Remote Monitoring

The Remote Monitoring System plays a role to monitor and control the remote fields by using telephone or other networks unlike supervising inside the building. Similarly to monitoring in fields, it is possible to monitor the distant workplaces for 24 hours by exclusive lines. Public Lines, used by dialing in at the appointed hour, are appropriate for monitoring systems where measured values do not change suddenly and significantly.

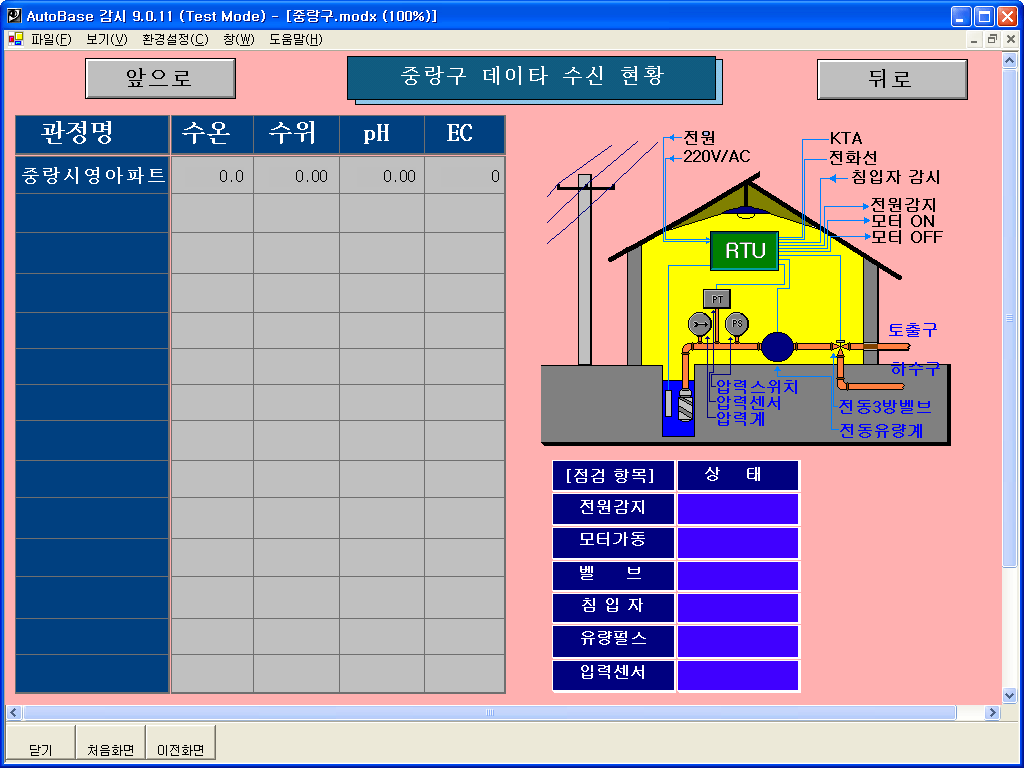

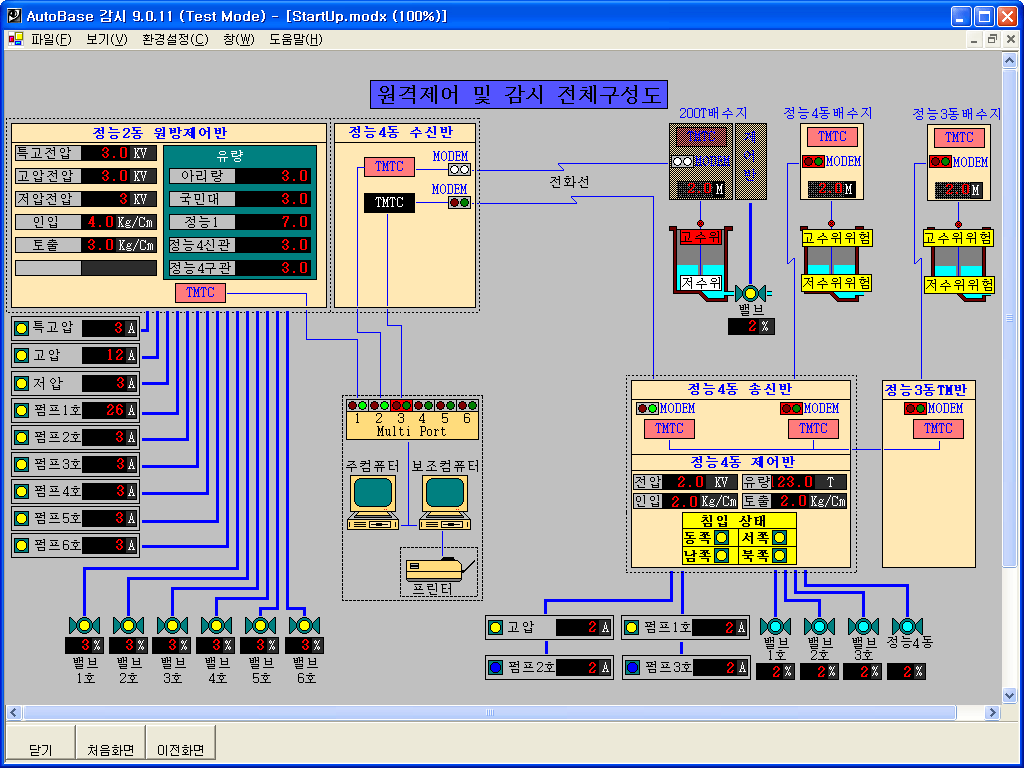

System Setup Screen

• Displays how to install systems briefly, and shows a chart to verify driving status of the current instruments and all of the surrounding management areas.

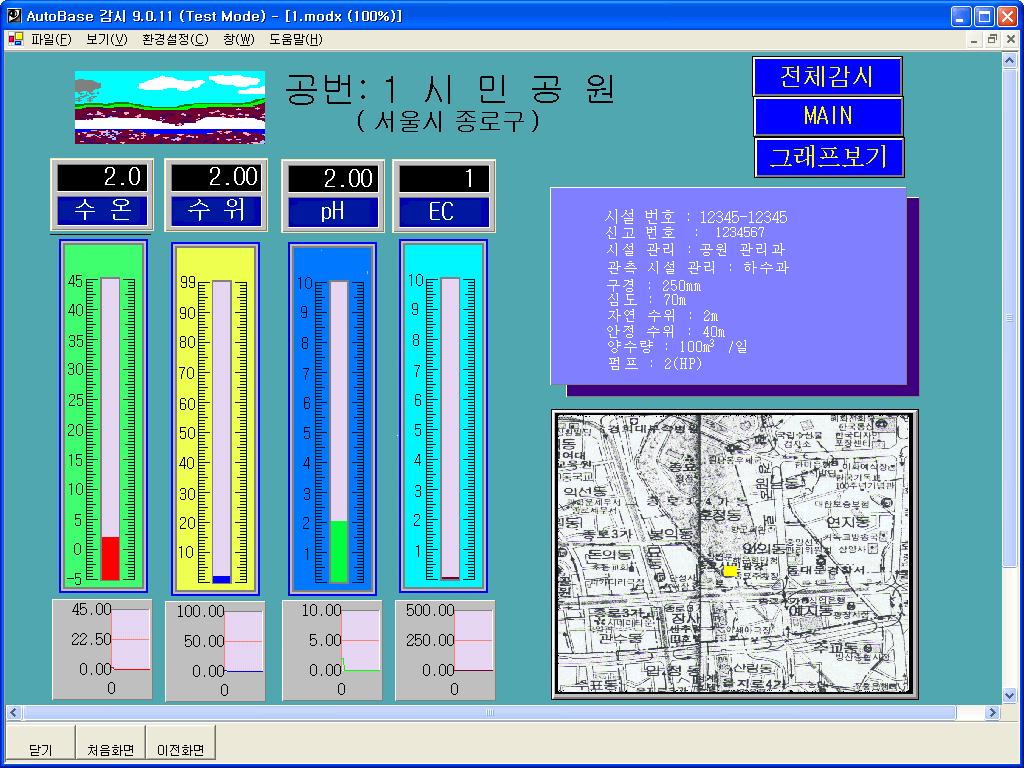

Section Control Screen

• The Section Control Screen is configured to find out the status of the affected area thoroughly.
• Shows PH, water level, temperature, EC, etc. in control areas in particular, and displays the installation stations on the map.

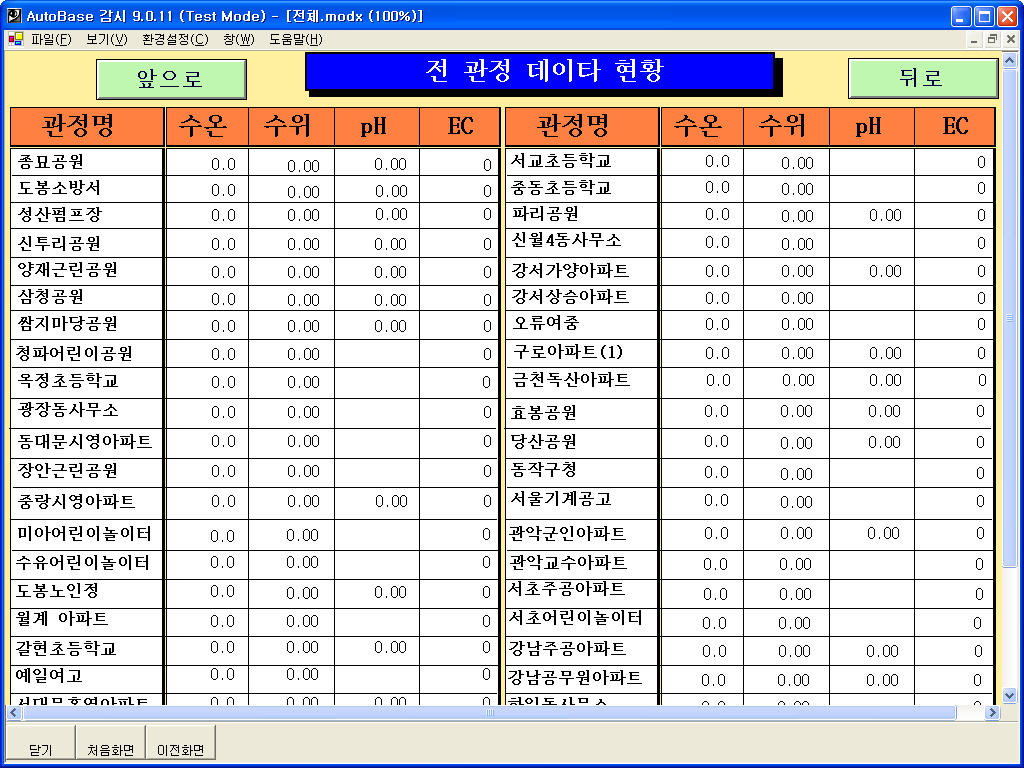

Data Sheet Screen

• Can compare and analyze data of all the stations where instruments are installed.

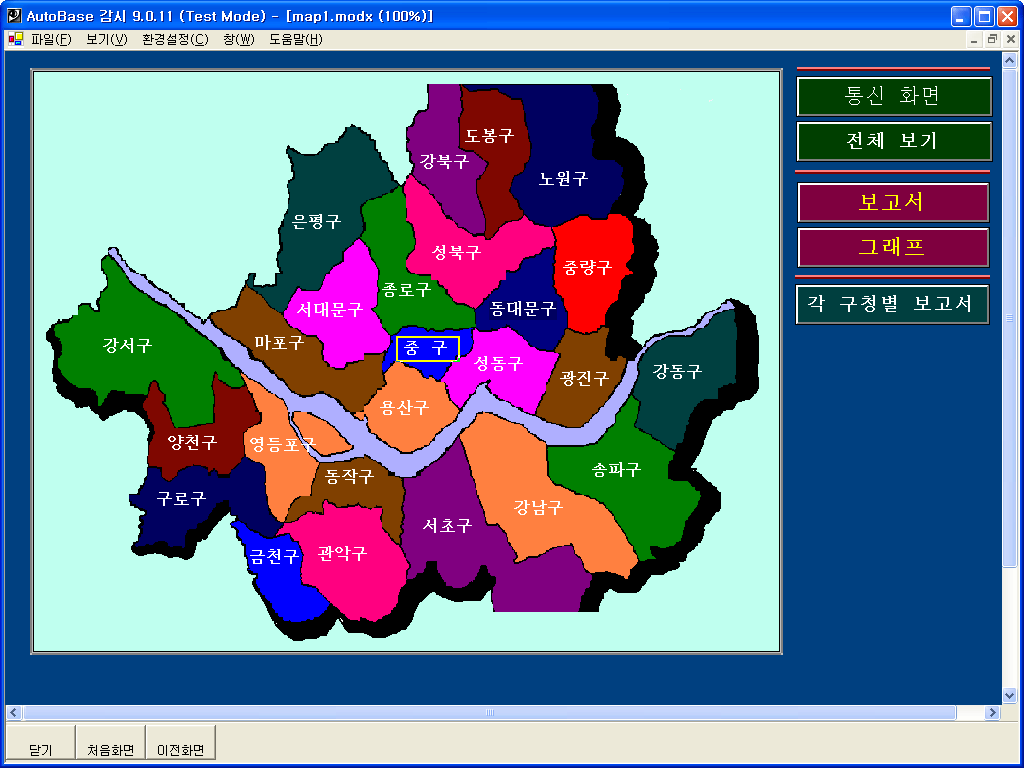

Overall Management Area Screen

• Easy to manage setup areas categorized by Gu.
• Shows Gu information in detail, once you click the related area on the map.

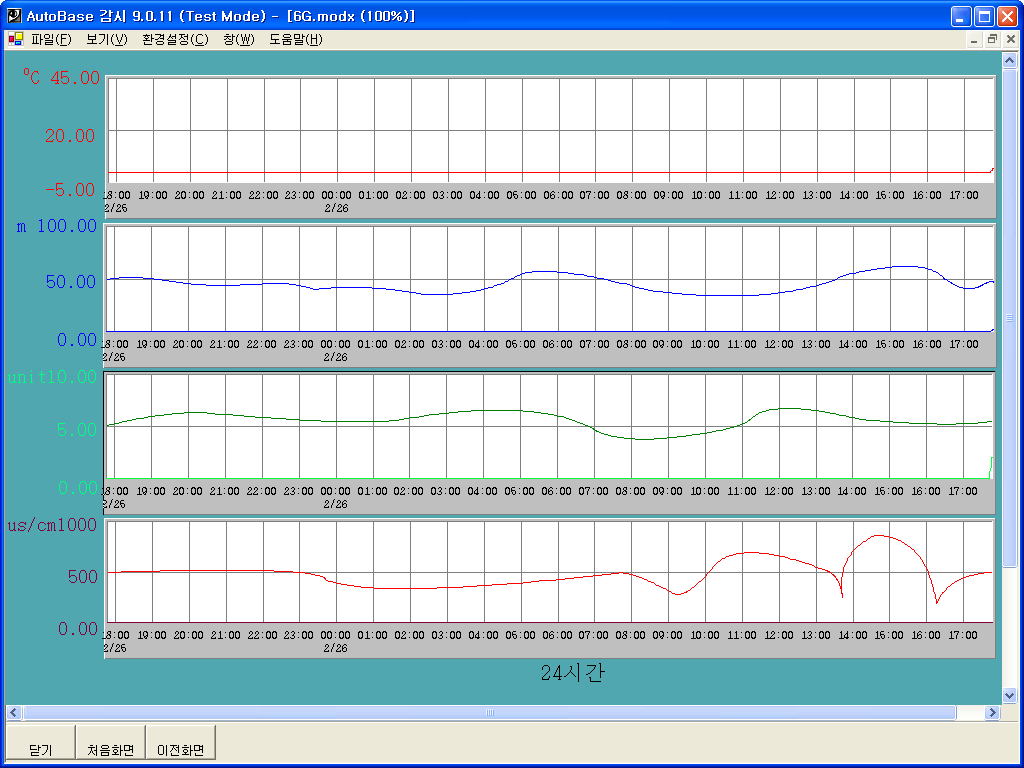

Comparative Graph Screen

• The Section Control Screen is configured to find out the status of the affected area thoroughly.
• Shows PH, water level, temperature, EC, etc. in control areas in particular, and displays the installation stations on the map.

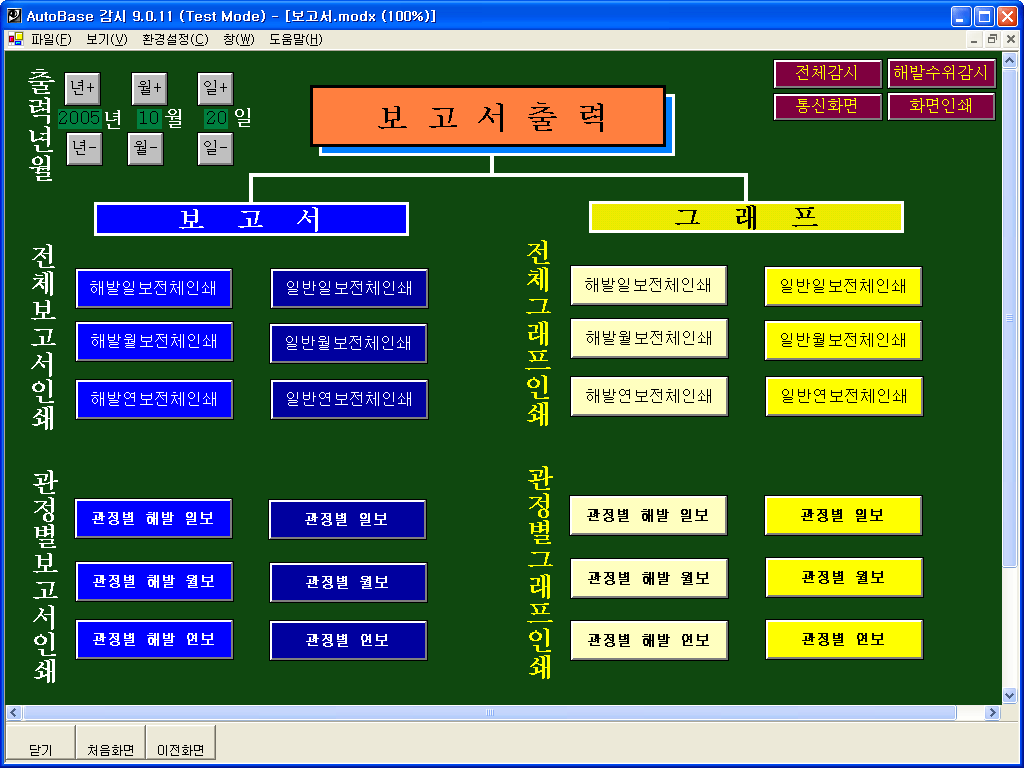

Report Management Screen

• The graphic screen is programmed to print monitored date immediately.
• Is organized to print out, or display a daily/a monthly/a yearly report with a selection of print dates.
