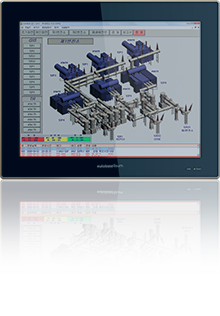

ATP15P-S
15inch 1.6GHz Low-heat, Low-power Touch Panel
ATP series are low-heat, low-power, high-performance and stable touch panels. It's aluminium front and metal case are luxurious and durable. Autobase SCADA Software has been pre-installed. So you can save the system configuration cost. And ATP Touch panels support a variety of ports and has excellent scalability.
ATP series are low-heat, low-power, high-performance and stable touch panels. It's aluminium front and metal case are luxurious and durable. Autobase SCADA Software has been pre-installed. So you can save the system configuration cost. And ATP Touch panels support a variety of ports and has excellent scalability.
ATP touch panels come with Autobase SCADA and which can help you configure systems economically
It is easy to reuse project and that helps developers to save their valuable time and efforts.
It is easy to reuse project and that helps developers to save their valuable time and efforts.
This product is a low-heat, low-power, simple maintenance, suitable for the system to put priority on stability.
High-end Aluminium front and metal case has good heat dissipation and excellent durability
High-end Aluminium front and metal case has good heat dissipation and excellent durability
| Specifications | |
| Display | 15 inch XGA(1024*768) |
| CPU | Intel ATOM N270 1.6 GHz (FSB:533/667 MHz) |
| Touch controller | PenMount USB controller |
| Mainboard | Intel 945GSE, ATOM compatible |
| Memory | 2GB DDR2(667Mhz/PC5300) |
| Storage | SSD 120GB (Max Read:450MB/s, Write:410MB/s) |
| VGA | Intel GMA 950 Graphics Dual Channel 128MB(LVDS/Analog) |
| Audio | Mic-in, Line-out |
| Ethernet | 2 Ports (Gigabit LAN) |
| Serial Port | 4 Ports
(RS-232C 3Ports, RS-232C/422 Optionanl 1Port) |
| USB | 4 Ports |
| Keyboard/Mouse | Mouse 1 port, KeyBoard 1 Port (PS/2) |
| CD-ROM | - |
| OS | Windows Embedded Standard 7 |
| Utility | EWF(OS Protection), Recovery(The factory state recovery) Software |
| Input Power | AC 115~230V(50~60Hz) |
| Power Consumption | 43W~55W |
| Front Waterproof | IP65 |
| Option | |
| SSD 250GB | Upgrade SSD 120GB with SSD 250GB |
| HDD 500GB | Replace SSD 120GB with HDD 500GB ( SATA2 / 7200 rpm / 16M ) |
| LCD Stand | PS-20S(Prime Direct) |
